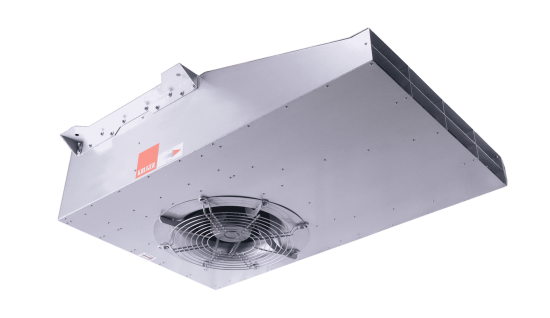

IJC II Series - Induced Jet Fan



Overview :

Compact design, especially suitable for car park with low head room.

Large volume flow rate, long throw distance, low sound level.

Easy maintenance.

High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.



Specifications :

Quick Facts

 •  Size from 50 to 100

 •  Capacity up to 11,100 m3/h

 •  Thrust force up to 97N

 •  Outlet velocity up to 26.2 m/s

 •  Suitable for ventilation and smokespill application



Operating Temperature

 •  General ventilation: -20°C to +55°C.

 •  Smoke exhaust system: 200°C, 250°C, 300°C or 400°C - 2 hrs



Motor

•   General Ventilation

All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV).



•   Smoke Exhaust System

All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified). 60 Hz motor is available upon request.
