Specifications :

---

Quick Facts

•  The air outlet consists of horizontal and vertical directions

•  Size from 400 to 1000 mm

•  Capacities to 43, 000 m3/h

•  Total pressure up to 800 Pa

•  Low noise level and easy installation

Application

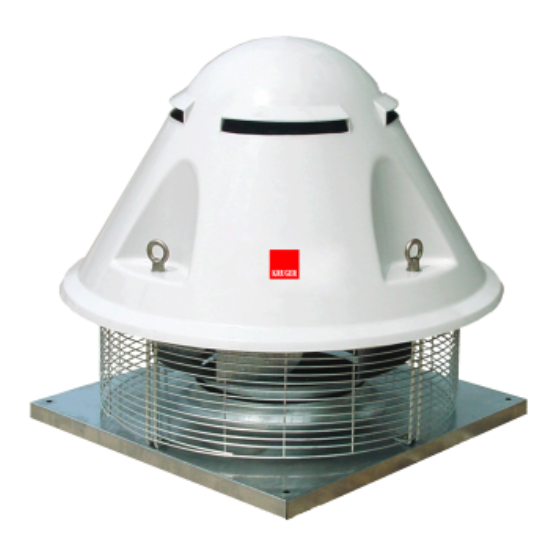

It is specially designed for roof exhaust, installed vertically, and the airflow is vertical and radiant.

Finish

Painting or galvanised after manufacture are normal finishes on all parts.

Operating Temperature

-20deg.C to +80deg.C

Motor

Fully enclosed motor, insulation grade Class 'F', protection grade not lower than IP54. When the power of the three-phase motor is below 2.2kW, the direct start mode is adopted, and when the power of the three-phase motor is above 3.0kW, the star-delta conversion start is adopted.
