CFC Series - Direct Driven and Belt Driven





Overview :

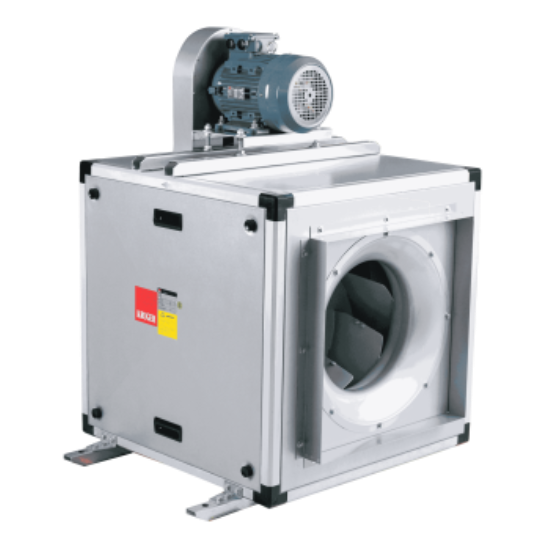

CFC Series is a compact cabinet centrifugal fan is designed for supply, exhaust and pressurization in general clean air, grease laden air and smokespill application. It is compact, easy to install and service, generates high static pressure and low noise.

Both air and sound performance ratings are tested and certified by AMCA, in accordance to AMCA211 and AMCA311 Standards.

High temperature (up to 400°C/2Hrs) in accordance with EN12101-3 certification by TÜV SÜD a third-party globally renowned testing and certification organisation.



Specifications :

Quick Facts

•  Backward curved

•  Size from 315 to 800

•  Capacity up to 30,000 m3/h

•  Static pressure up to 1,000 Pa

•  Compact cabinet, easy to installation and service. suitable for clean air



Airstream operating temperatures

•  Clean air standard ventilation application -20°C to +55°C.

•  Kitchen (grease laden air) application up to +205°C / 400°F.

•  High temperature smokespill application up to 400°C/2Hrs certified.



Motor

All CFC Series fans are supplied with a wide variety of both 1PH and 3PH AC, PM and EC, standard and high temperature rated motors.





Brochures :



  CFC - CAT041.E0.ED3.pdf

  CFC & CFK Series - Installation Instruction.pdf
