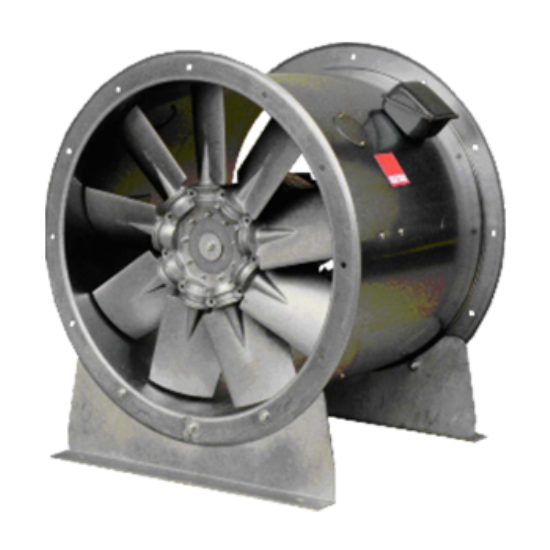

TDA Series - Direct Driven Tube Axial Fan







Overview :

For commercial and industrial application where large volume of air is required at moderate pressure.

High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.
All impellers are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Specifications :

Quick Facts

•  Size from 315 to 2000

•  Capacity up to 360,000 m3/h

•  Static pressure up to 1,000 Pa

•  Suitable for clean air normal ventilation and smokespill application.



Operating Temperature

•   Normal Ventilation: -20°C to +55°C

•   High Temperature Application: available up to 400°C/2Hrs.



Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.
