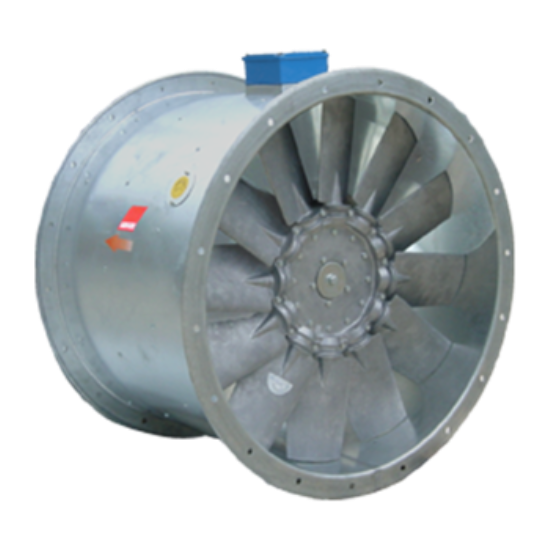

TDA-V Series - Vane Axial Fan - Direct Driven Type





Overview :

For general ventilation and smoke extraction in various commercial and industrial applications, typical applications include commercial buildings, hospitals & museums, schools & libraries, theatres & auditoriums, factories & processes, metro stations.

High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.

All impellers are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Specifications :

Quick Facts

•  Size from 315 to 2000 mm

•  Capacity up to 300,000 m3/h

•  Static pressure up to 1300 Pa

•  High efficiency and pressure

•  Suitable for clean air normal ventilation and smokespill application.



Operating Temperature

•  Normal Ventilation: -20°C to +55°C

•  High Temperature Application: available up to 400°C/2Hrs.



Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.





Brochures :



  TDA-V Series - Direct Drive Vane Axial Fan (AMCA Air) - Product Catalogue.pdf

  TDA-V Series - Direct Drive Vane Axial Fan (AMCA Air & FEG) - Product Catalogue.pdf

  Manual Instruction for Axial fan.pdf
