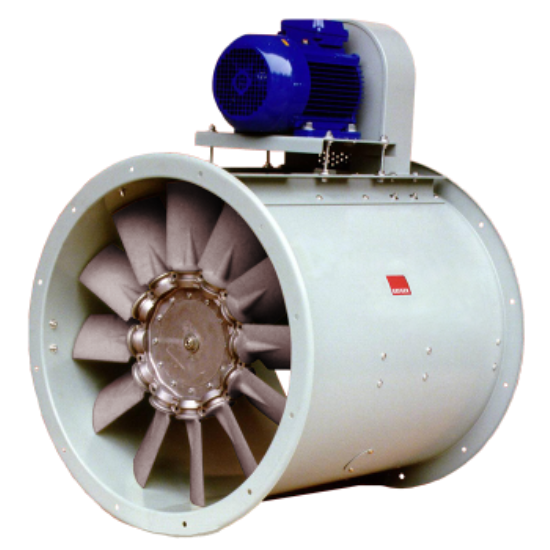

TBE Series - Axial Flow Fan - Belt Driven Type





Overview :

For commercial and industrial application where motor need to be out of the air stream, such as kitchen exhaust.

All impellers are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Specifications :

Quick Facts

•  Size from 315 to 2000 mm

•  Capacity up to 315,000 m3/h

•  Static pressure up to 1000 Pa



Operating Temperature

•  Normal Ventilation: -20°C to +85°C.



Motor

Total Enclosed Fan Cooled (TEFC), Class “F”, IP54 protection. Standard motors up to 2.2kW are supplied with DOL starting. Motors 3.0kW and above are with star/delta starting. Motors of other specification are available upon request.



Brochures :



  TBE Series - Axial Flow Fan - Belt Driven - Product Catalogue.pdf

  Manual Instruction for Axial fan.pdf
