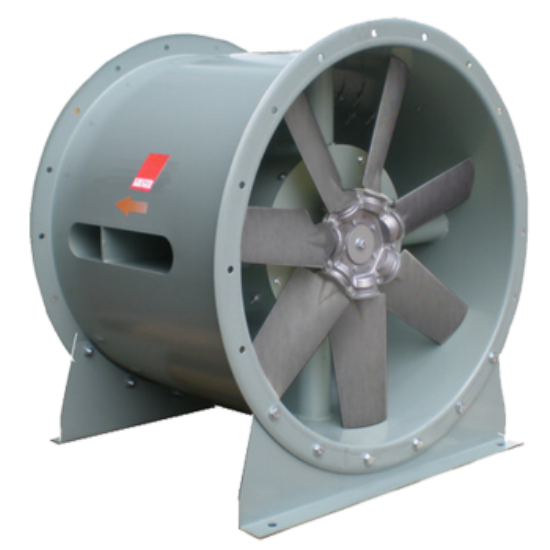

TDB II Series - Direct Driven Bifurcated Fan






Overview :

For commercial and industrial application where motor need to be out of the air stream, such as kitchen exhaust.

All impellers are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.



Specifications :

Quick Facts

•  Size from 400 to 1400 mm

•  Capacity up to 140,000 m3/h

•  Static pressure up to 1000 Pa

•  Suitable for general ventilation, kitchen exhaust and removal of contaminated air.



Operating Temperature

•  Normal Ventilation: -20°C to +180°C.



Motor

Totally enclosed Class 'F', with a minimum IP54 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.





Brochures :



  TDB II Series - Axial Flow Fan - Direct Driven - Product Catalogue.pdf

  Manual Instruction for Axial fan.pdf
