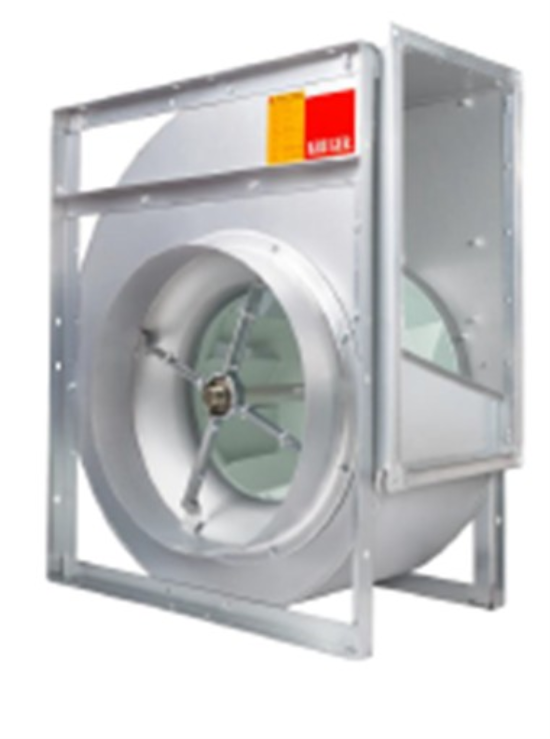

BSB Series - Single Inlet Centrifugal Fans - Backward Wheels





Overview :

BSB series is SISW centrifugal fans with high efficiency non-overloading backward curved impellers.

The fans are suitable for supply or exhaust applications in commercial, process and industrial HVAC systems.

Sizes of this series are in accordance with AMCA standard 99-16.

Both air and sound performance ratings are tested and certified by AMCA, in accordance to AMCA210 and AMCA300 Standards.

High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Specifications :

Quick Facts

•  Size from 200 to 2000 mm

   (Size 1600 to 2000 mm available upon request)

•  Capacities to 360,000 m3/h

•  Total pressure up to 4500 Pa

•  Suitable for ventilation and smokespill application

   (Tested accordance with BS7346: Part2: 1990, class B, C and D performance criteria)



Application

For supply or exhaust application in commercial, institutions and industrial buildings.



Testing

Both air and sound performance ratings are based on test to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.





Brochures :



  BSB Series - Single Inlet Centrifugal Fan - Backward Wheels - Product Catalogue (Edition 4).pdf

  Manual Instruction for Centrifugal Fan .ED01.pdf
